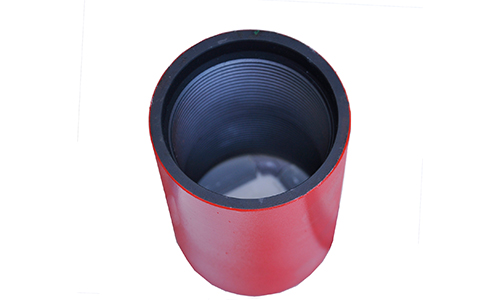

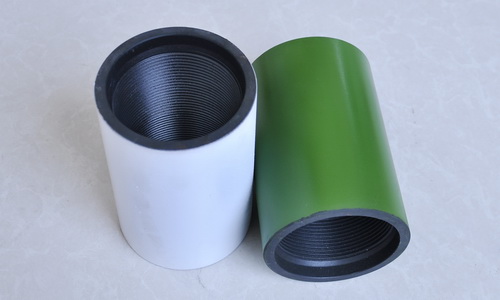

NU（non-upset） tubing coupling
All our products are produced and processed according to , with the materials of steel grade including J55, K55,...
Overview
All our products are produced and processed according to , with the materials of steel grade including J55, K55, N80, N80-1, N80-Q, L80, P110 and so on. The couplings have two types, namely NU (non-upset) and EU (external upset). By numerically controlled lathe and import molding cutter, the processing of thread can be finished in one time, which ensures its commonality and interchangeability. We have complete testing abilities, adopting a whole set of single testing apparatus of thread, including tape, pitch, tooth depth, profile and so on. Our products have already passed the identification of the Quality Testing and Inspection Centre of Oil Pipe of CNPC (China National Petroleum Corporation).
Features
size、tolerance and weight of NU（non-upset） tubing coupling
|
Code number |
SPECa |
O.D (㎜) |
MIN LENGTH (NL/㎜) |
BORING RANG (Q/㎜) |
WIDTH OF BEARING SURFACE Q/㎜ |
MAX Diameter of the bearing surface of the special chamfering Bf/㎜ |
WEIGHT (Kg) |
|
O.D.(㎜) |
|||||||
|
1.900 |
48.26 |
55.58 |
95.25 |
49.86 |
1.59 |
52.07 |
0.56 |
|
2-3/8 |
60.32 |
73.02 |
107.95 |
61.93 |
4.76 |
66.68 |
1.28 |
|
2-7/8 |
73.02 |
88.90 |
130.18 |
74.63 |
4.76 |
80.98 |
2.34 |
|
3-1/2 |
88.90 |
107.95 |
142.88 |
90.50 |
4.76 |
98.42 |
3.71 |
|
4 |
101.60 |
120.65 |
146.05 |
103.20 |
4.76 |
111.12 |
4.35 |
|
4-1/2 |
114.30 |
132.08 |
155.58 |
115.90 |
4.76 |
123.19 |
4.89 |
Specifications
Packaging & Delivery
Packaging details: Ply-wooden export pallets
Specifications:
Standard: API 5CT
Size: .1.900" -- 4 1/2"
Grade: J55/K55/N80/L80/P110
MOQ: 1 Pcs
Capacity: 3000000 Pcs /year
